The best cost performance choice in the world, NO DOUBT, when it reachs to 1 meter

Email: info@3dmingda.com

Tel: +86 13530306290

Whatsapp: +86 13530306290

MD-1000 Pro
MD-1000 Pro
description1
Zipper closure 1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
MD-1000 Pro
MINGDA MD-1000 Pro uses large objects and industrial 3D industrial 3D printing is simple. It is an industrial 3D printing that responds to market demand, and is embedded with a new intelligent near-end system, enclosed heating, and automatic leveling system, which can produce impressive large photos. Combining heating and hot chambers, rapid scale-up printing presses can use high-quality materials to produce exciting and complex results. MINGDA MD-1000Pro has been increased. The new standards of material manufacturing have expanded the capabilities of large-scale 3D printers, and have brought fatal material cost and time reduction possibilities for more companies.

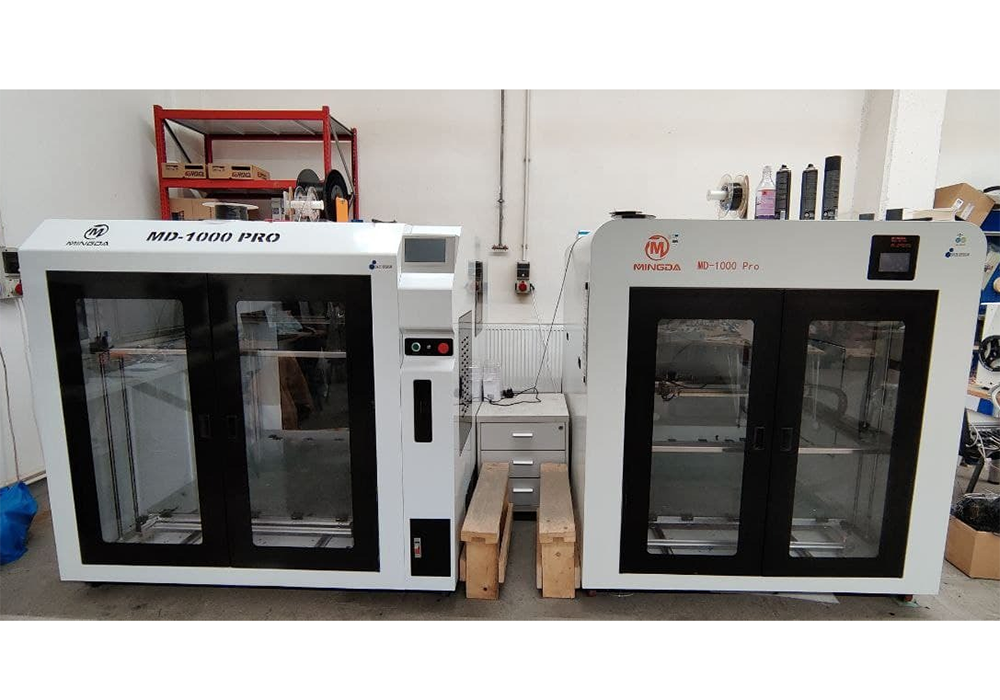

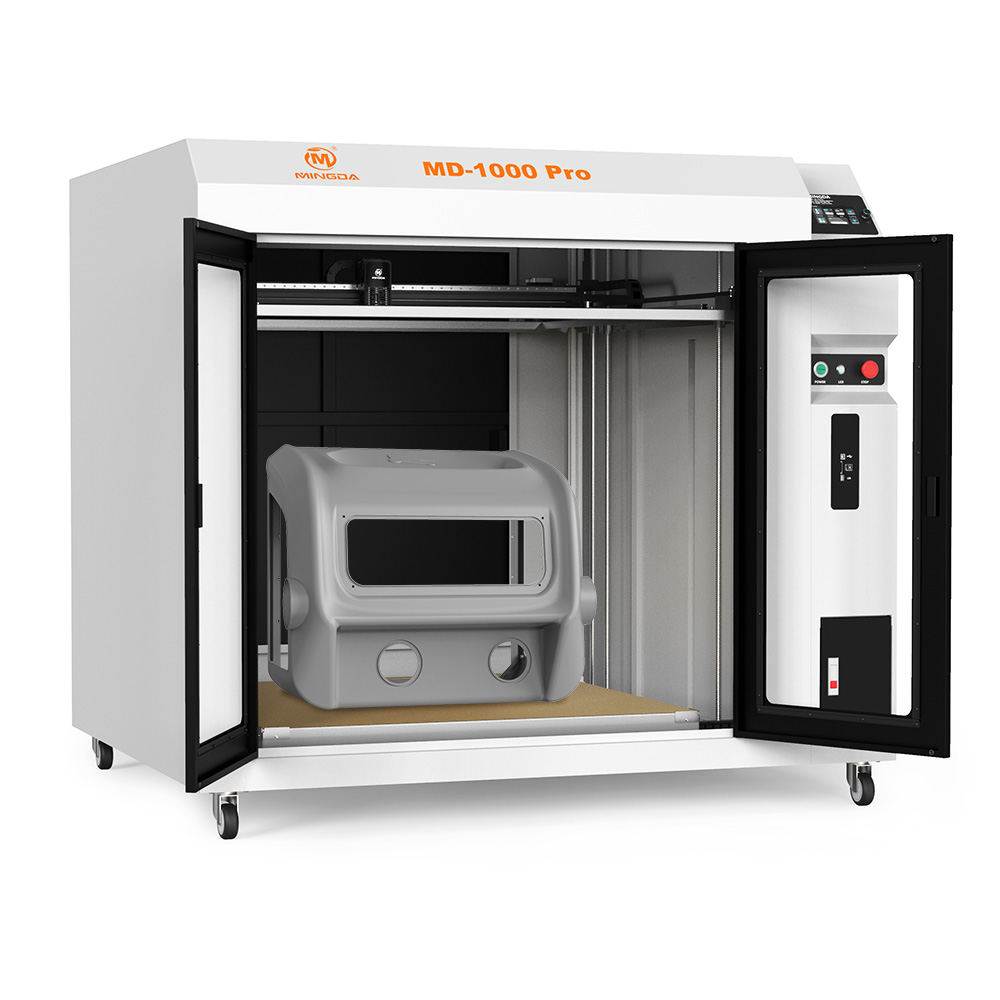

MINGDA 1000x1000x1000mm Super Large Industrial 3D Printer with High Temperature MD-1000 Pro. Continuous sales for 5 years, continuous optimization and upgrading, stable and reliable performance, after testing, the big guy who meets customer needs.

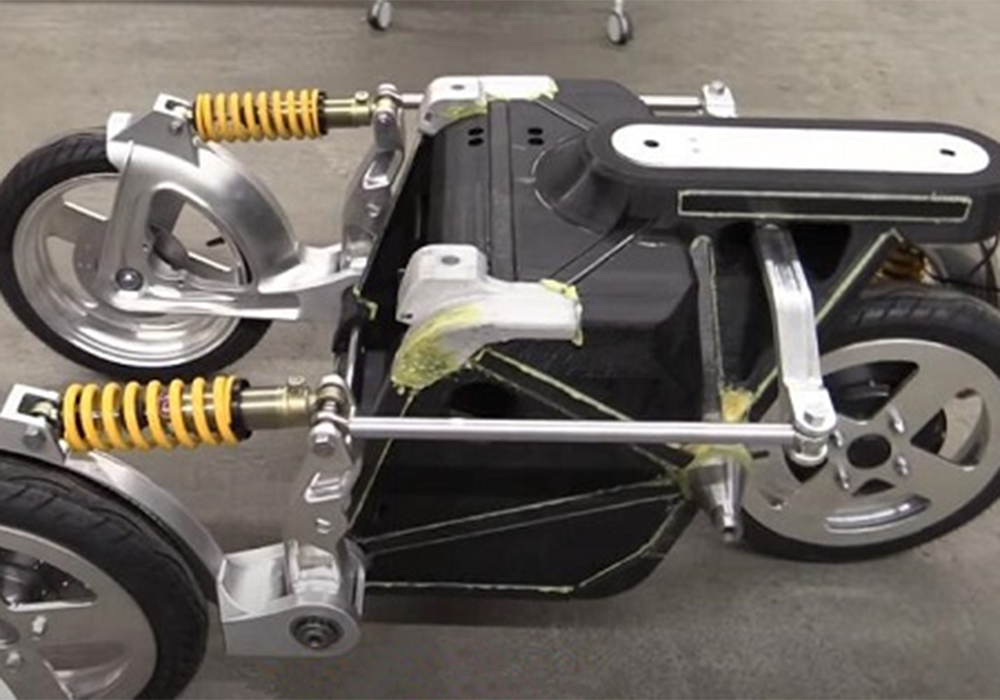

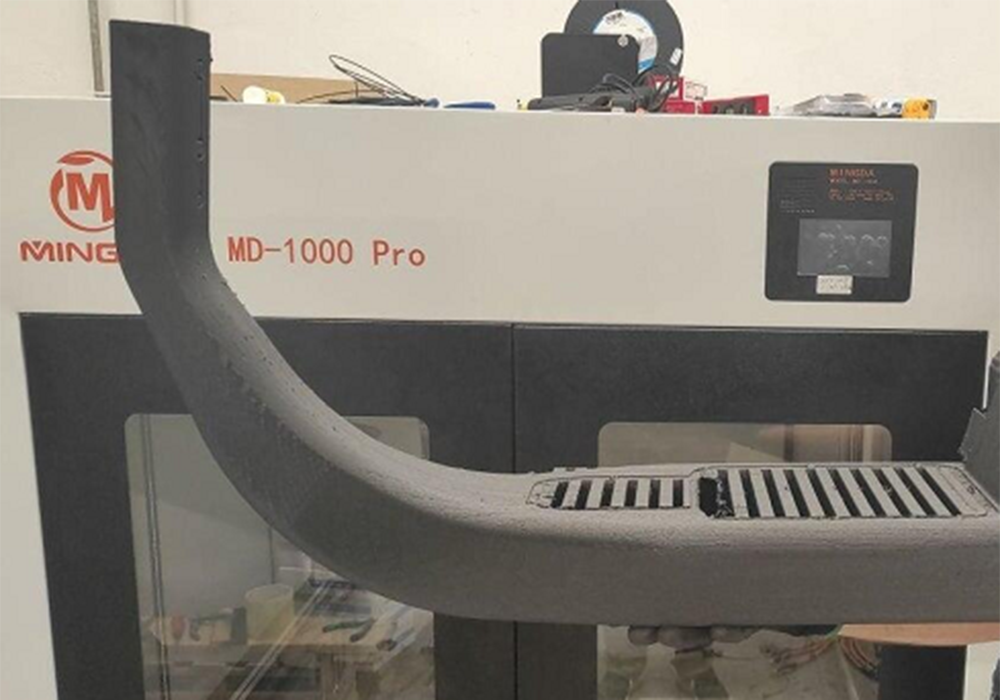

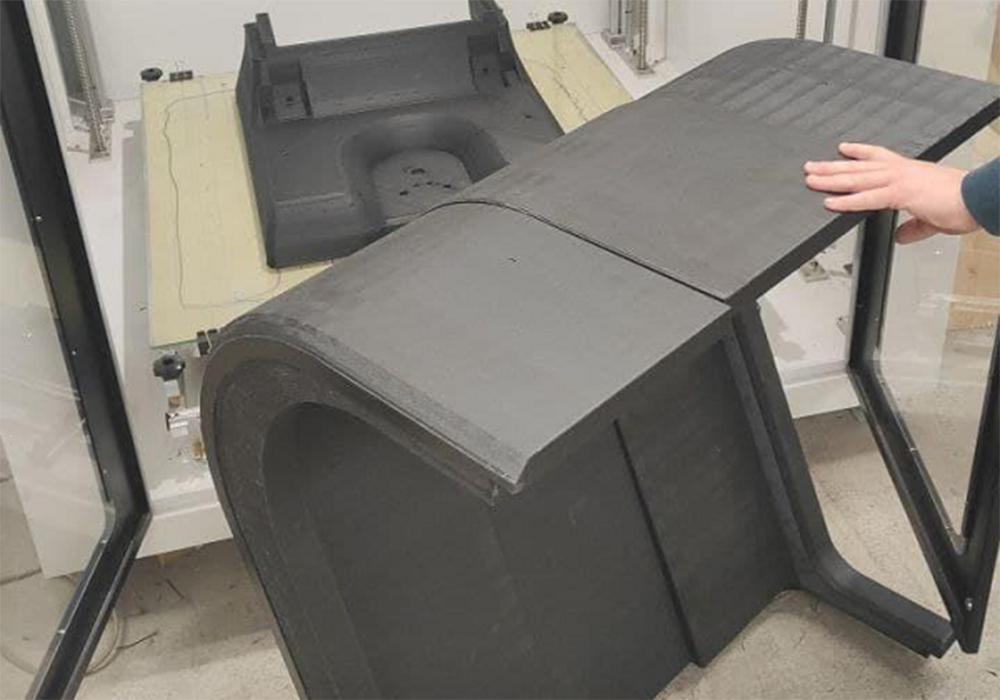

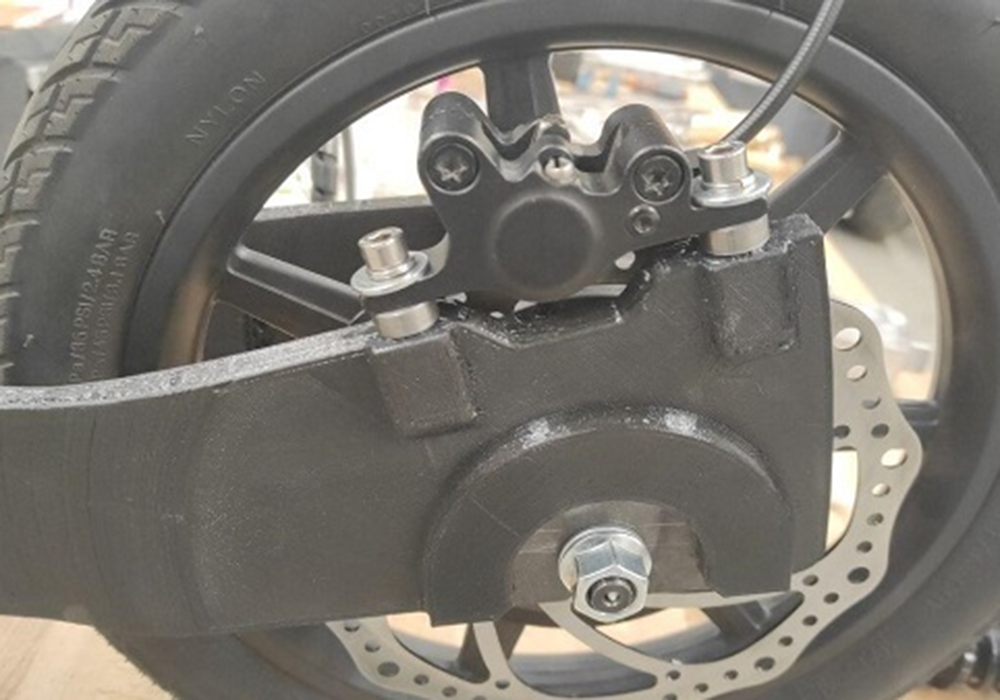

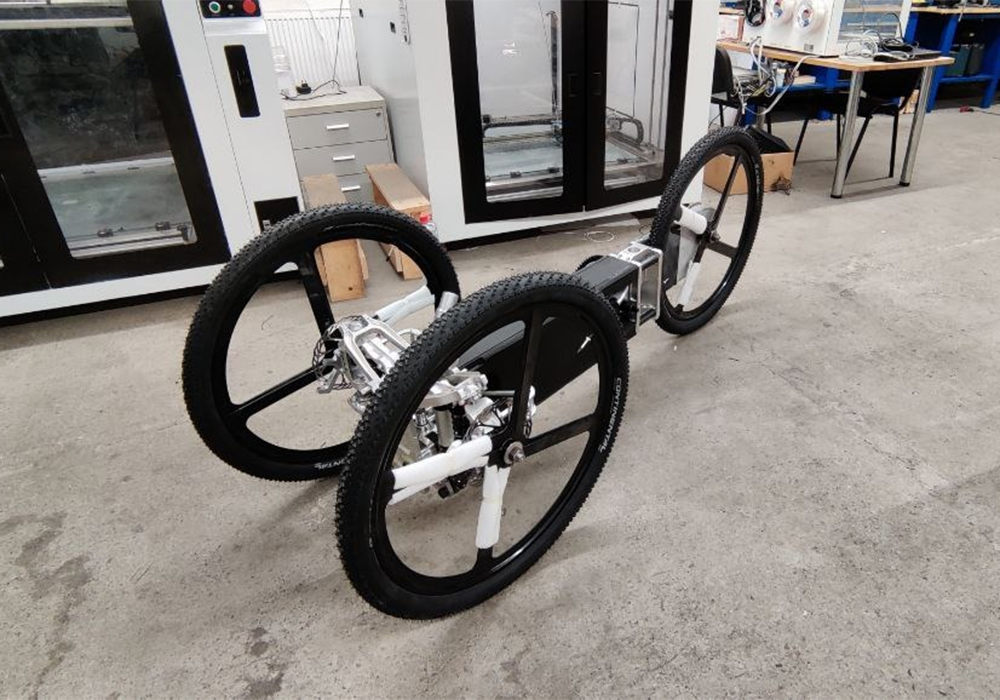

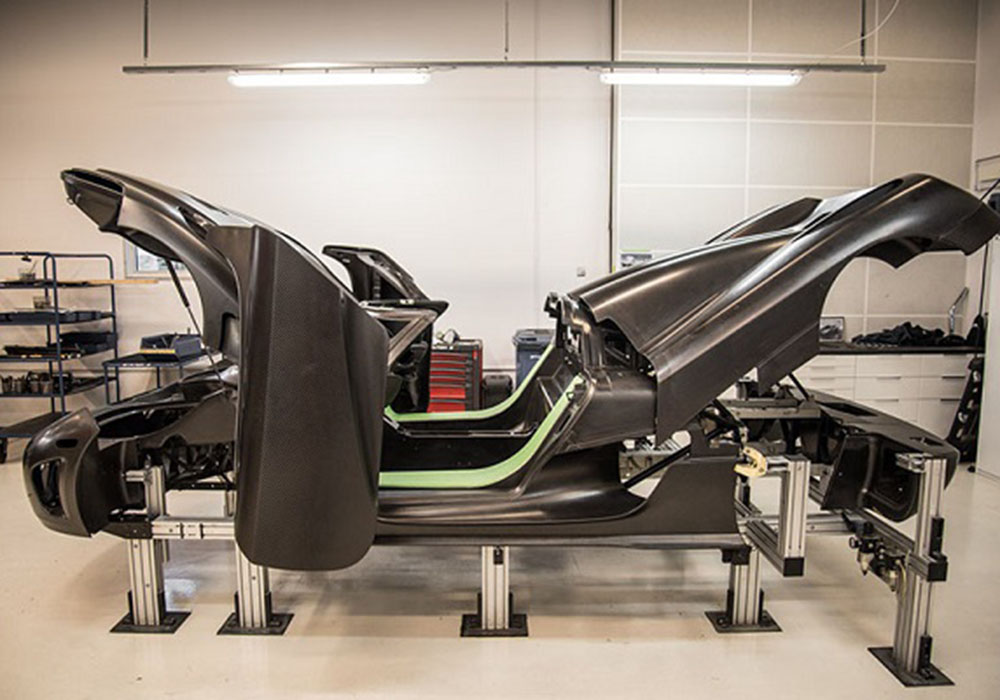

More And More Auto Parts Industry Uses 3D Printers To Print Sampels, Such As Front Axles, Bumpers, Seats, Etc., Which Greatly Saves Time And Cost In The Product Development Stage.



Nozzle Temprature Up To 350 ℃

350℃ global high temperature nozzles, exclusive launch, can support PLA, ABS, PC, Nylon, Carbon fiber, Flexible, etc.It provide more possibility on your application.

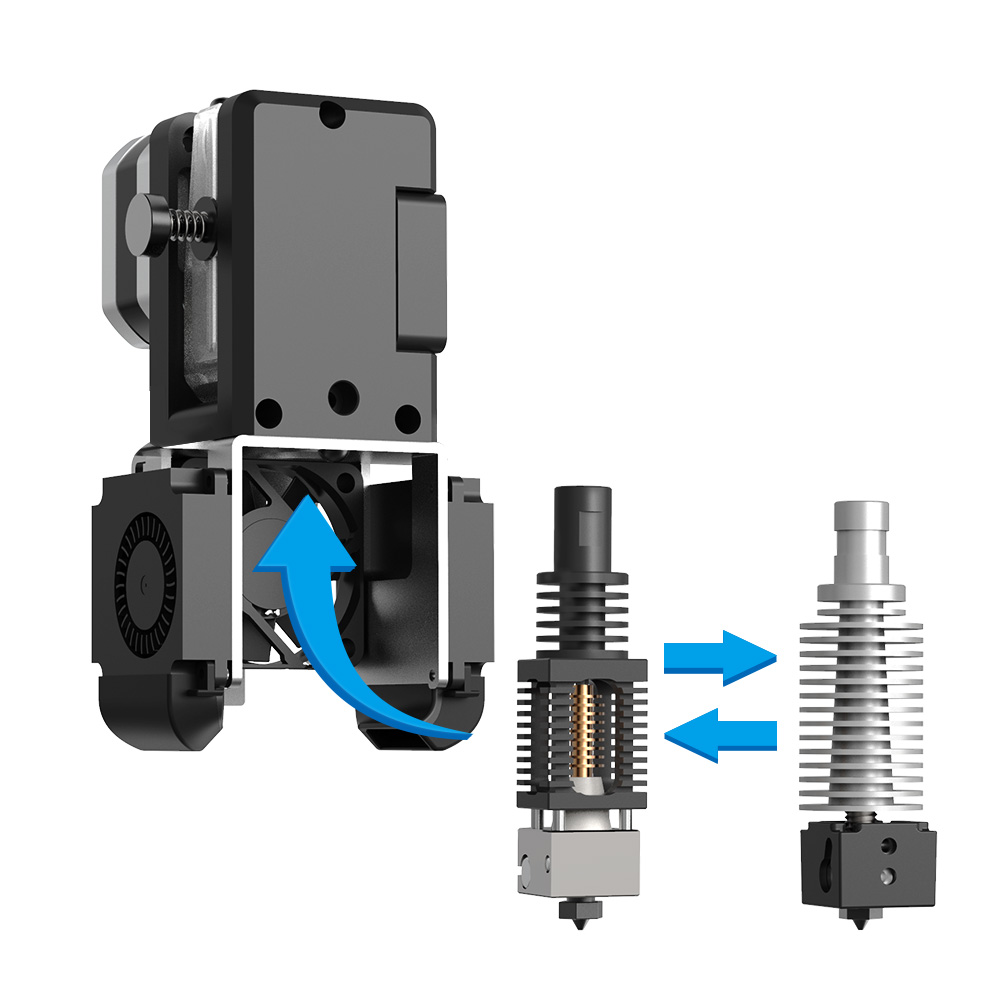

  • All Metal Hotend more durable
  • 350° Support More Filament
  • Direct Head Driving

Easily replace printheads.

Realize a variety of material printing.

High Precision

We exclusively research and develop the extruder feeding system support high-speed printing, and accuracy can reach high to 0.05mm, it allows to extrude filament steady without block.
  • Precision up to: 0.05 mm
  • Speed up to: 200 mm/s

Stability

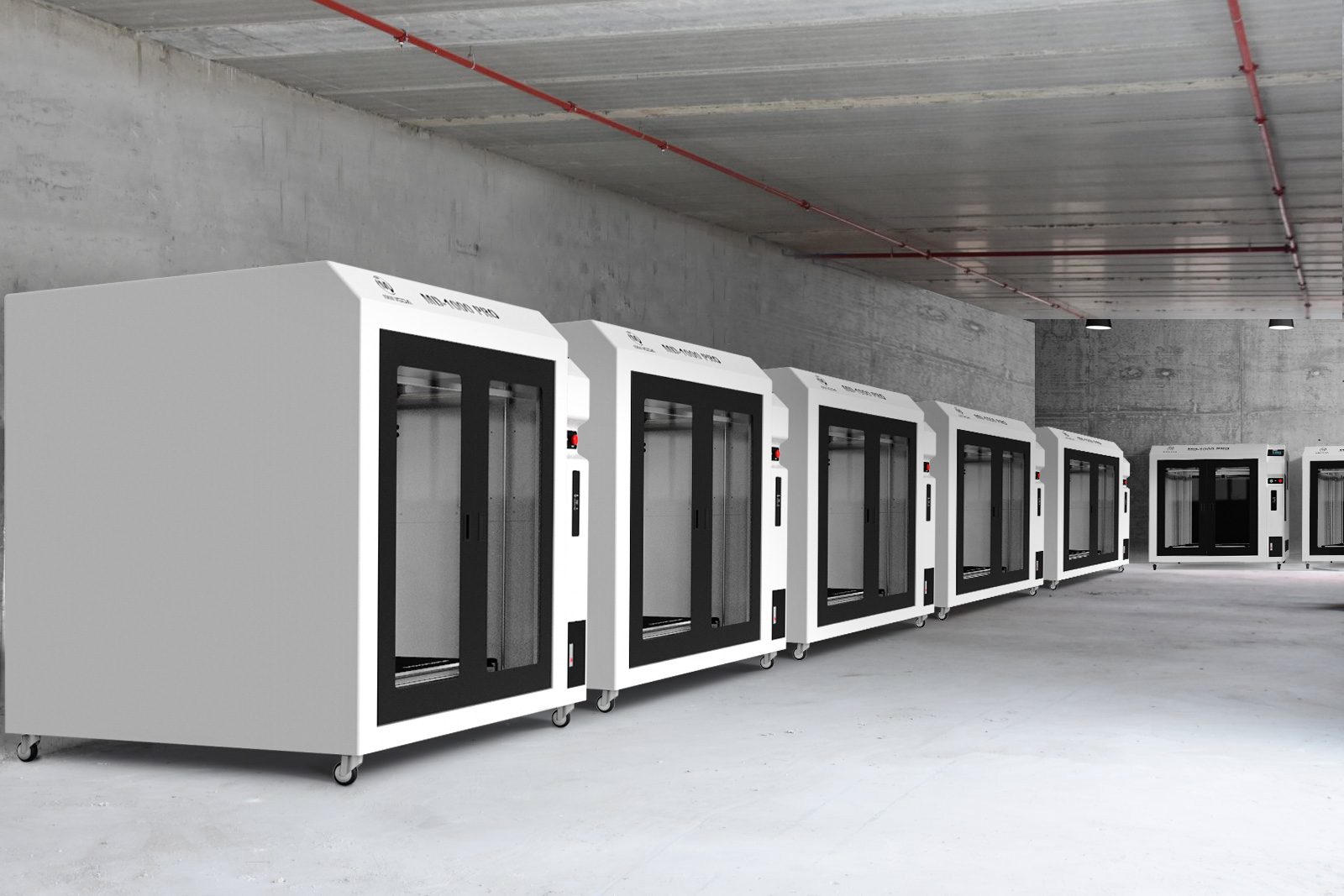

The whole-steel body not only ensure the stability during printing but also greatly extend working life. The optimization and cooperation of overall structure ensure the sustainable and efficient operation. The first batch of MINGDA 3d printers with whole-steel body have been working for 10 years .



Accurate Linear Guide Rail

The accurate linear rail structure can print models in accuracy high reach to 4~5 times higher than the other ordinary optical axis printers in mass market. This structure offers accurate filament feeding, so that can print large model fast and perfectly.

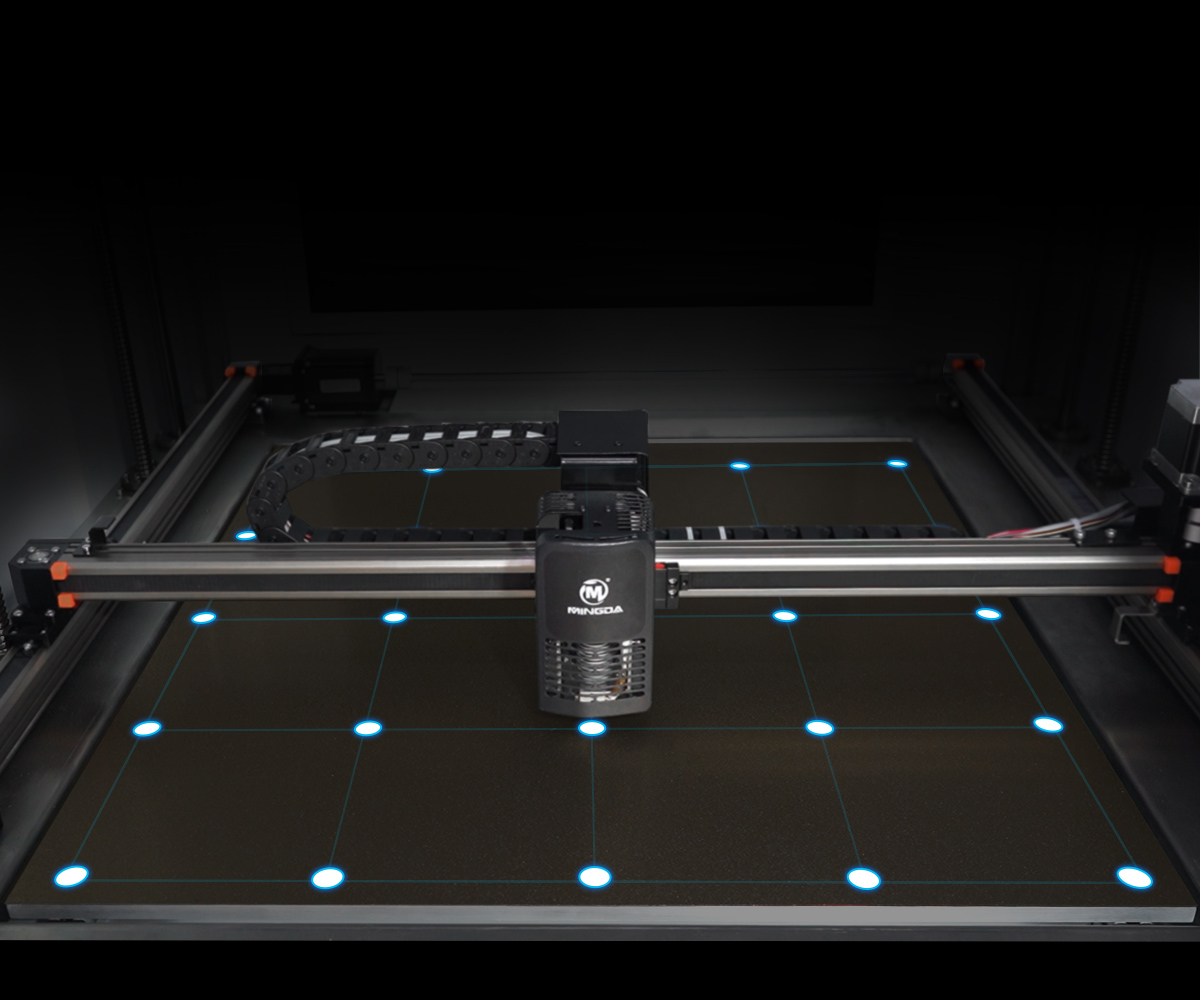

Innovator of Industrial 3D printer Auto-Leveling

Say goodbye to manual leveling, the intelligent leveling system can automatically adjust the uneven hotbed. High-sensitivity sensor, one-touch leveling and 25-point precise leveling.

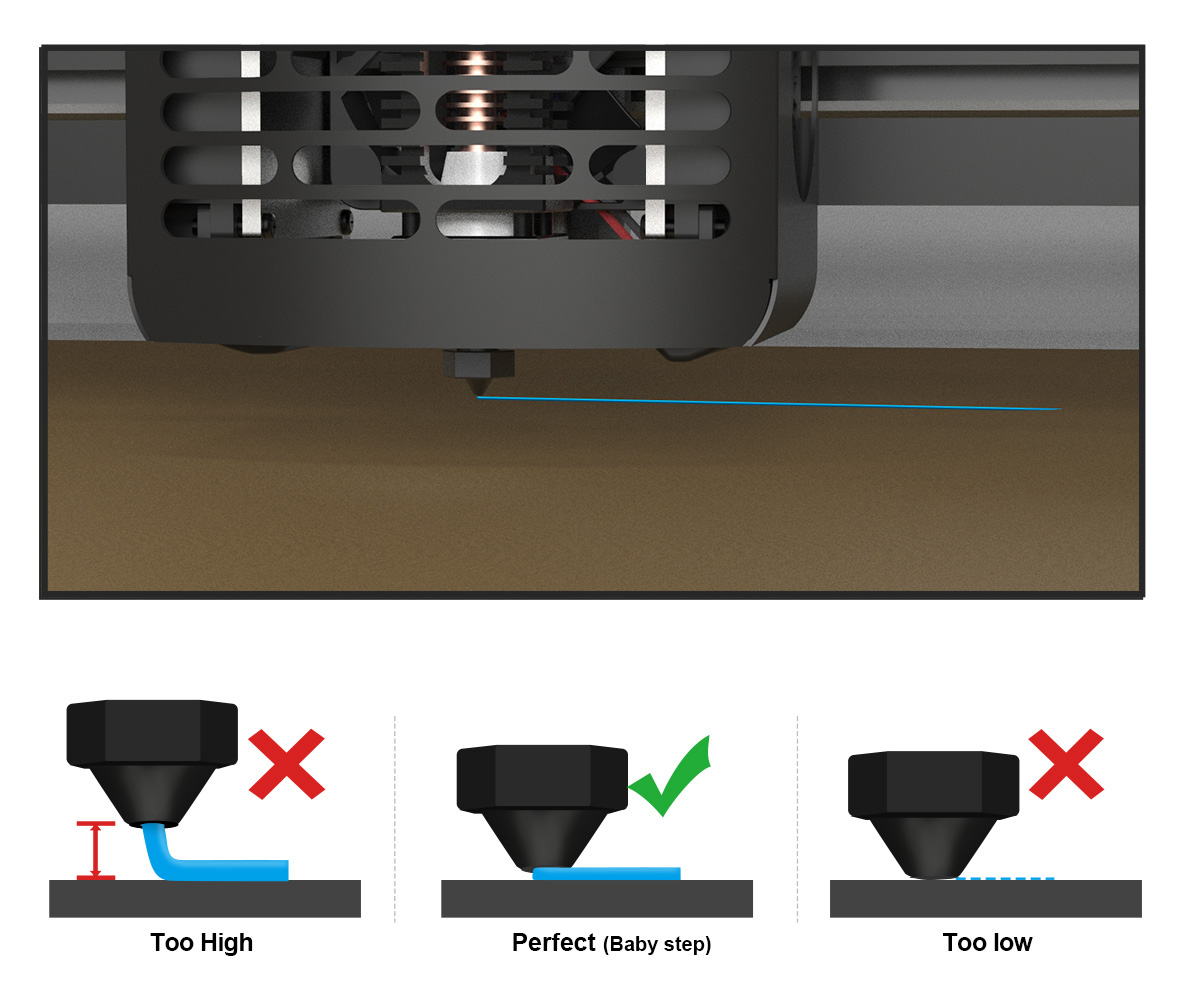

Baby Step Intelligent Compensation

Baby step function is added on MD-1000 Pro During the first layer printing process, the baby step can be used for precise leveling. The control accuracy of 0.01mm makes the first layer stable and reliable and makes the leveling more intelligent.

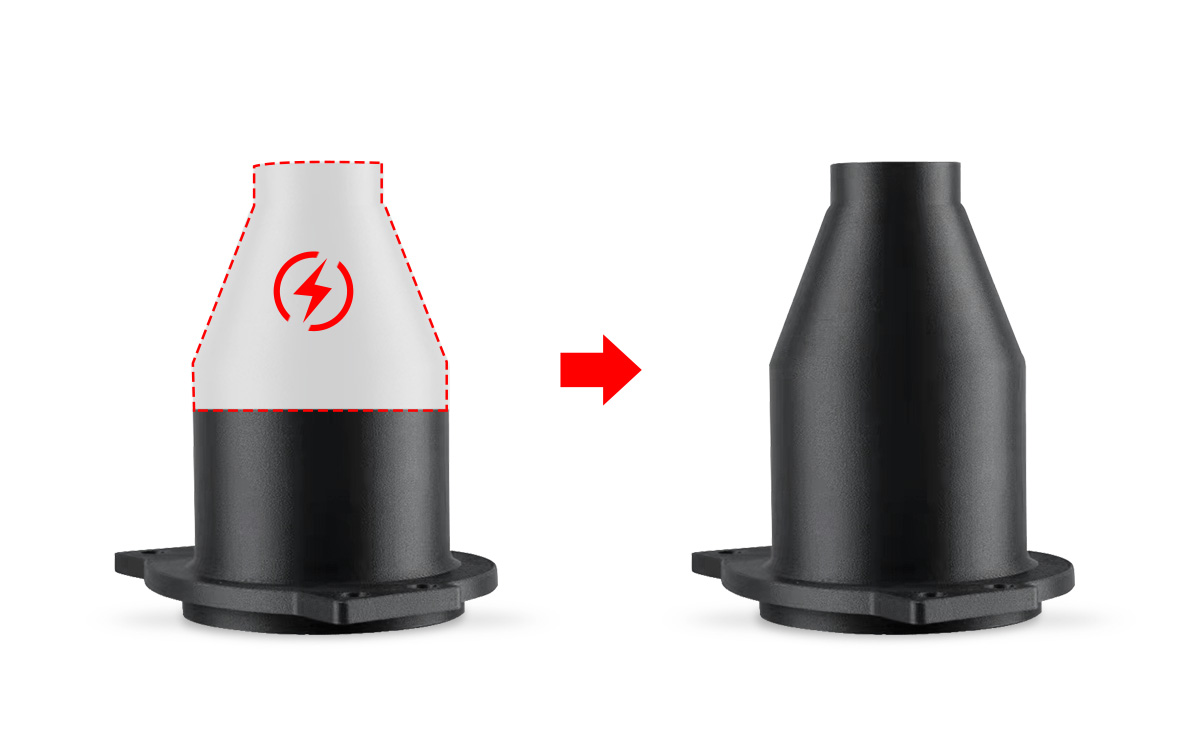

UPS (Uninterrupted Power Supply)

Buit in UPS, When the machine is powered off, the machine will automatically suspend printing, and retum to the home point, when the power on, the machine will continue to complete the remaining printing work from the point of suspension.

Upgraded Silent Motherboard

MD-1000 Pro uses a more powerful 32-bit motherboard independently developed by a MINGDA professional intemal team

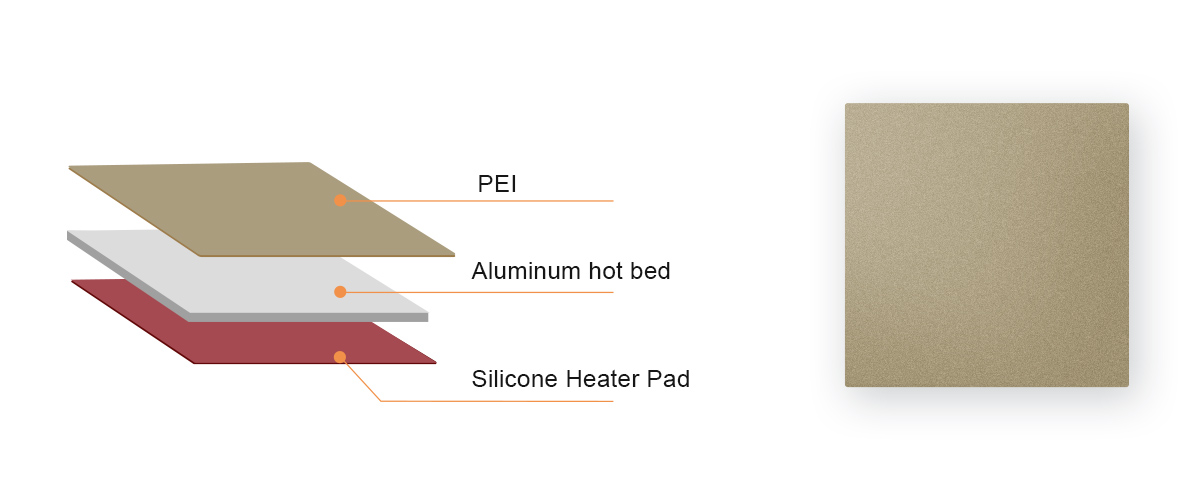

Efficient Platform
Other Details

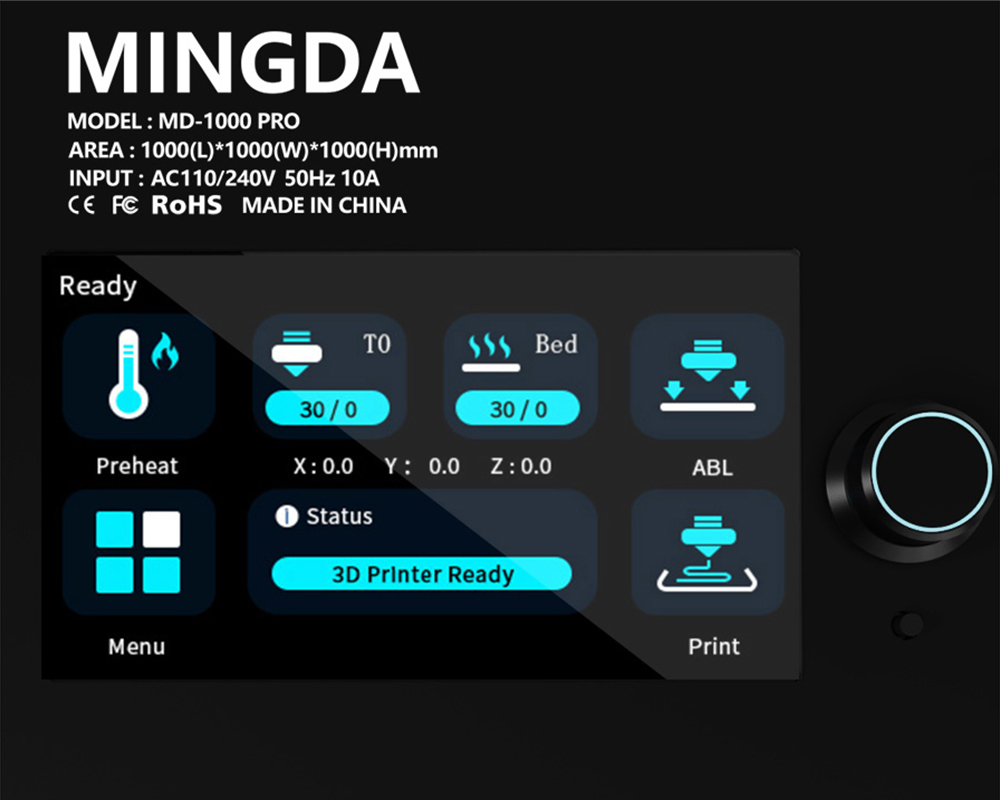

5 inch Colorful Touch Screen

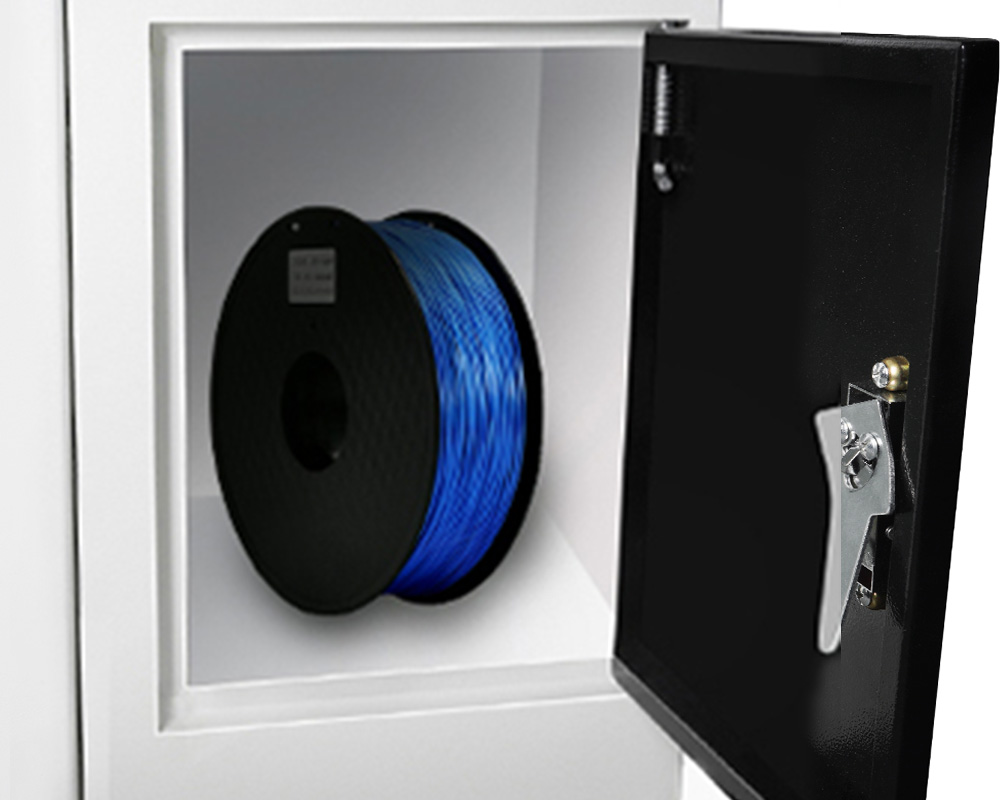

Closed hanging room

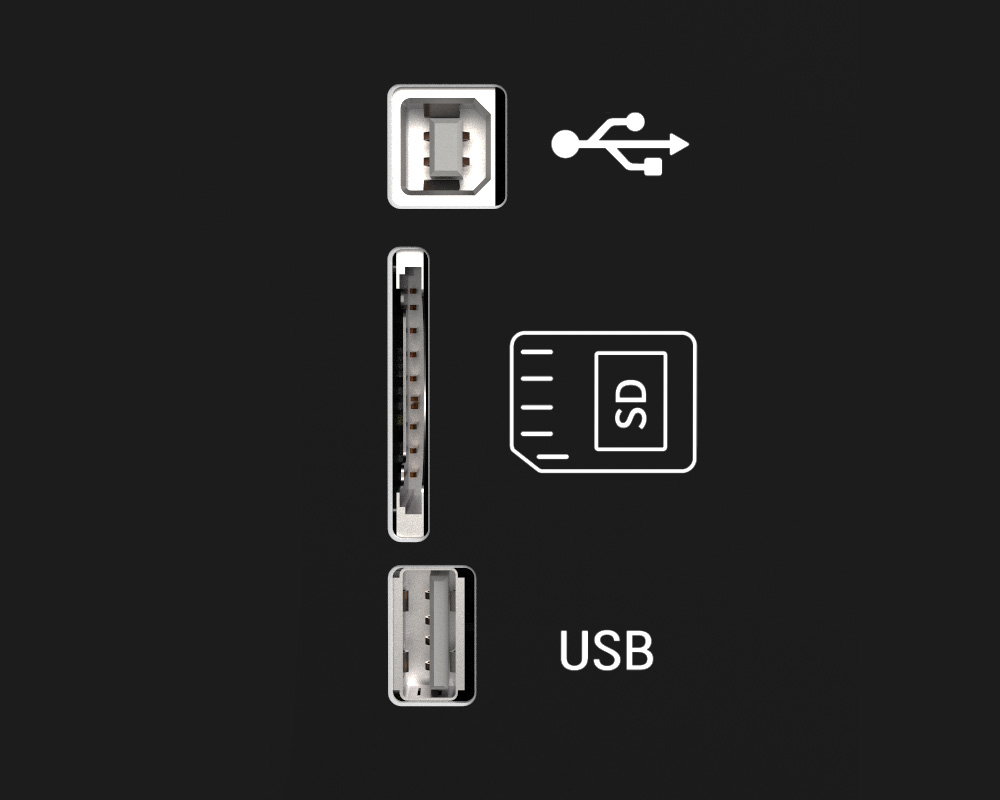

Support SD card or U disk Printing

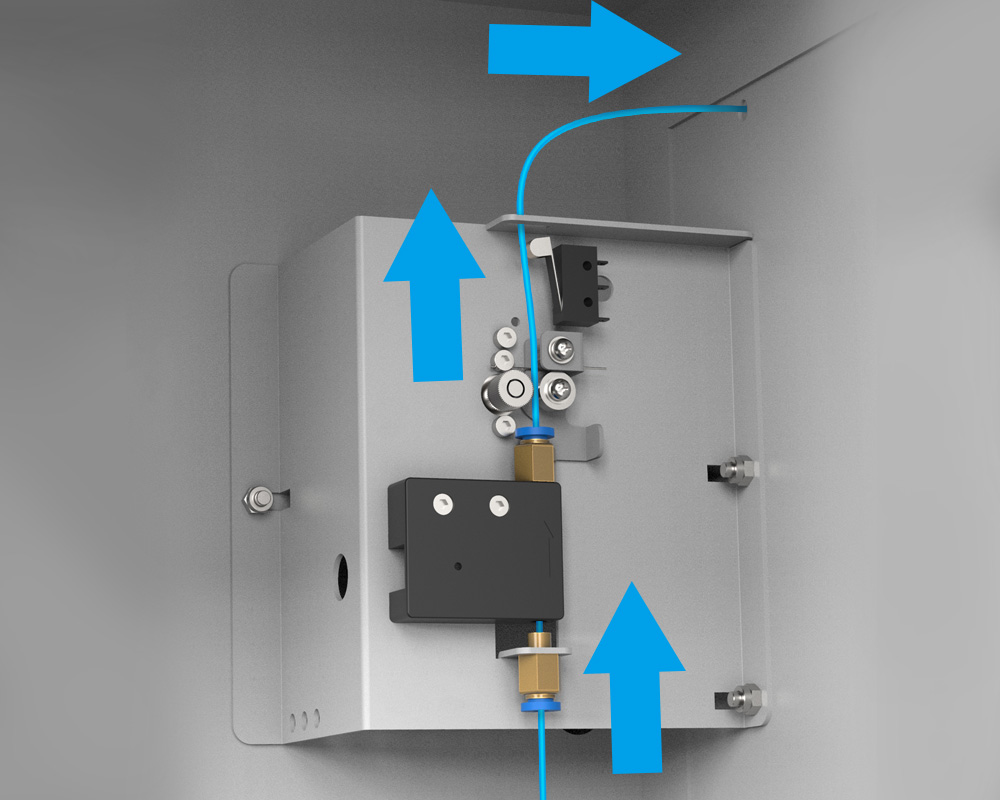

Auxiliary feeding

Front and Rear Door Design

Storage Box


Product Parameters

Product Parameters

PRINTING



TEMPERATURE



Printing Technology

Fused Deposition Modeling

Max. Nozzle Temp.

350degree

Bulid Volume

1000*1000*1000mm

Max. Bed Temp.

110degree

Number of Nozzle

Single





Layer Thickness

0.05-0.3mm

SPEED



Filament Diameter

1.75mm

Recommend Printing Speed

50-90mm/s

Filament Campatibility

PLA、ABS、ASA、TPU、PETG、PETG-ESD，PP, PET-GF, PET-CF, PA12-CF,HtPA-GF, HtPA-CF

Max Printing Speed

200mm/s

Nozzle Diameter

0.4mm





ELECTRICAL



MECHANICAL



Power Requirements

110/220V

Construction

Power-coated Steel, Aluminum Casting for Motion Components

Rated Power

1180W

Platform

10mm thickness aluminum hot bed

Connectivity

USB, SD card, U disk

Leveling

Auto-leveling



Postition Precision

X, Y axis: 0.015mm

Z axis: 0.0015625mm



SPECIAL FUNCTION



SOFTWARE



Uninterruptible Power System

Save data when power is off

Support Software

Cura, Reptier-Host, Simplify3D

Filament Detection

Pause printing when filament run out

Supported File Types

Stl, Obj, G-code

Automatic Shutdown

Turn off the power automatically when printing is complete

Operating Systems

Windows(7,8,10),Mac OS X
