MD-600 Pro
MD-600 Pro
MD-600 Pro
MD-600 Pro
MD-600 Pro
MD-600 Pro

MD-600 Pro

The best selling of large industrial 3D printer for mass production in the world

Email: info@3dmingda.com

Tel: +86 13530306290

Whatsapp: +86 13530306290

MD-600 Pro
MD-600 Pro
description1
Zipper closure 1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
MD-600 Pro

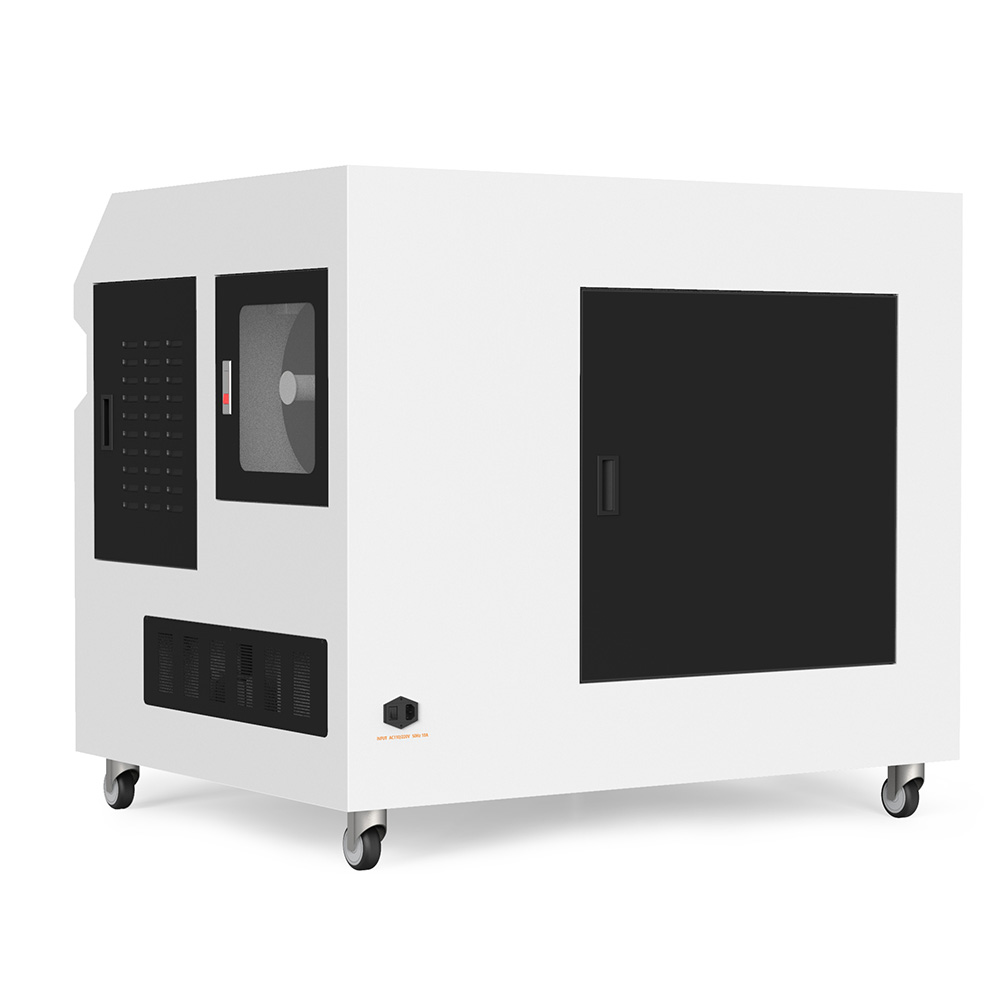

MD-600 Pro was deep developed in year of 2021, It is able to 3D print large size objects with high performance material for industrial application directly. Besides MD600 materials, Carbon fiber mixing, Nylon, PA, etc are enhanced options. If you are looking for a very professional industrial 3D printer with large-scale, MD-600 Pro will be your best choice.
The MD-600 Pro works perfectly in automotive or aerospace industries, as well as art design, products design, cultural relics reproduction or concept modelling. It brings the large-scale additive manufacturing on more affordable level in prototyping or designing.

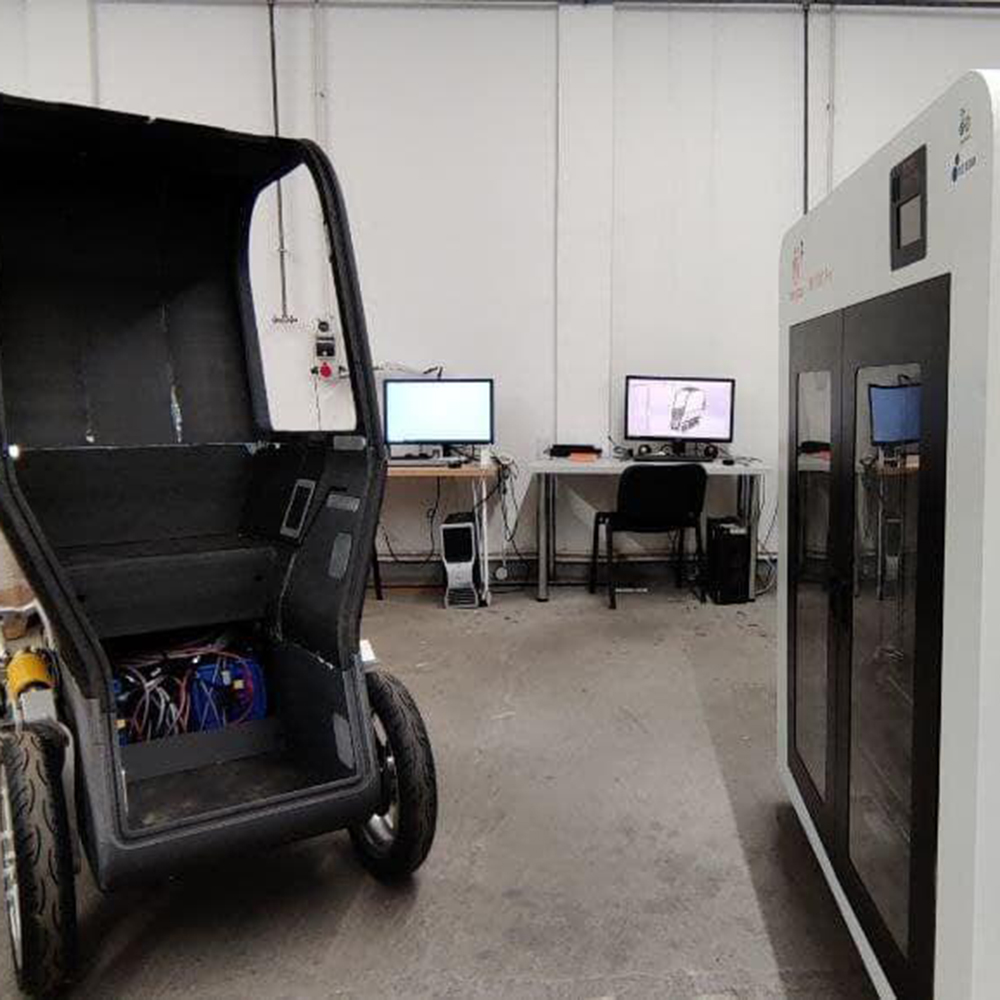

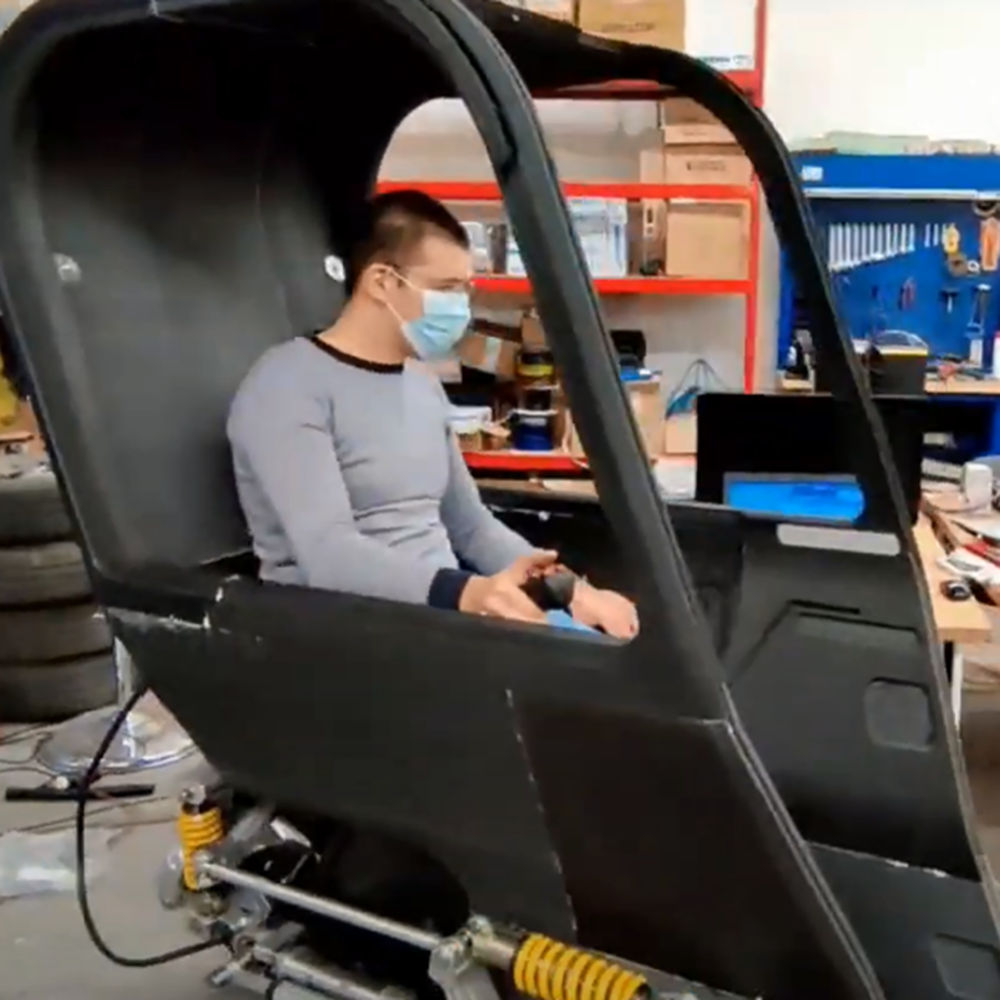

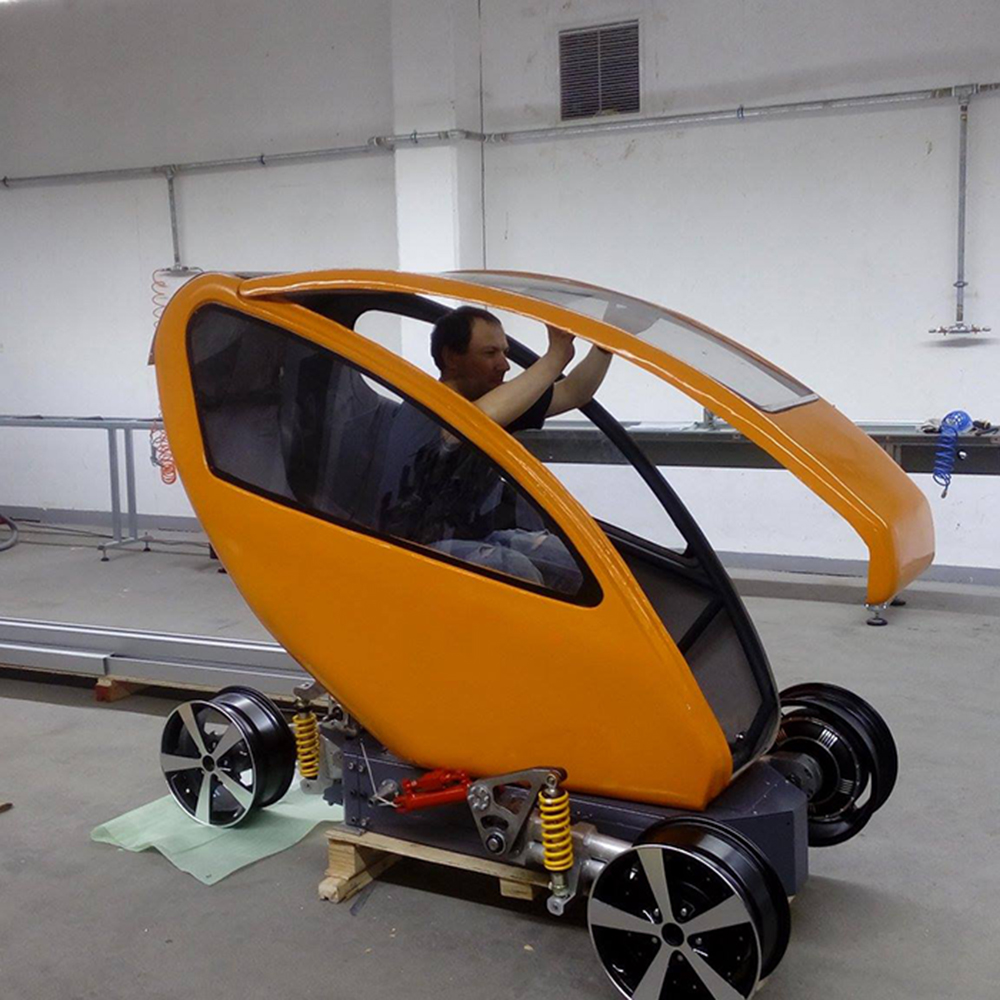

MD-600 Pro Assists The Development Of Autonomous Electric Vehicles.

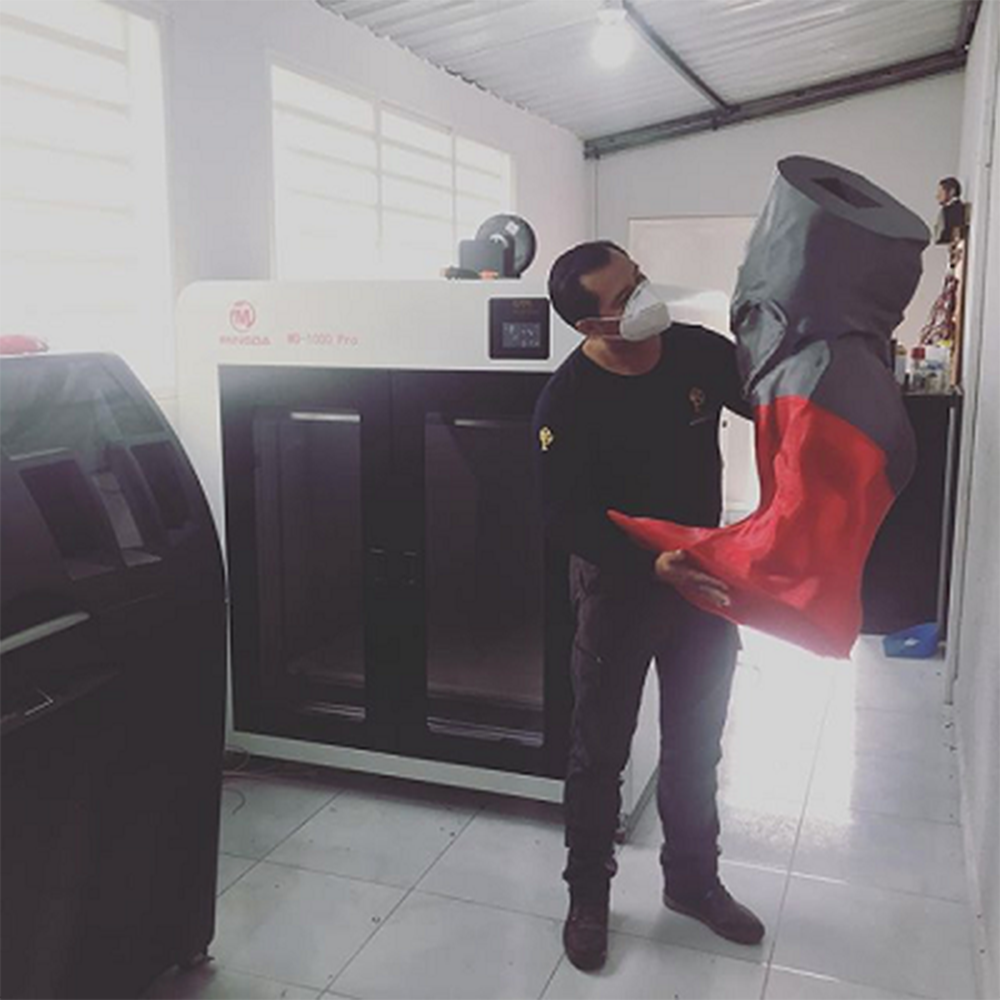

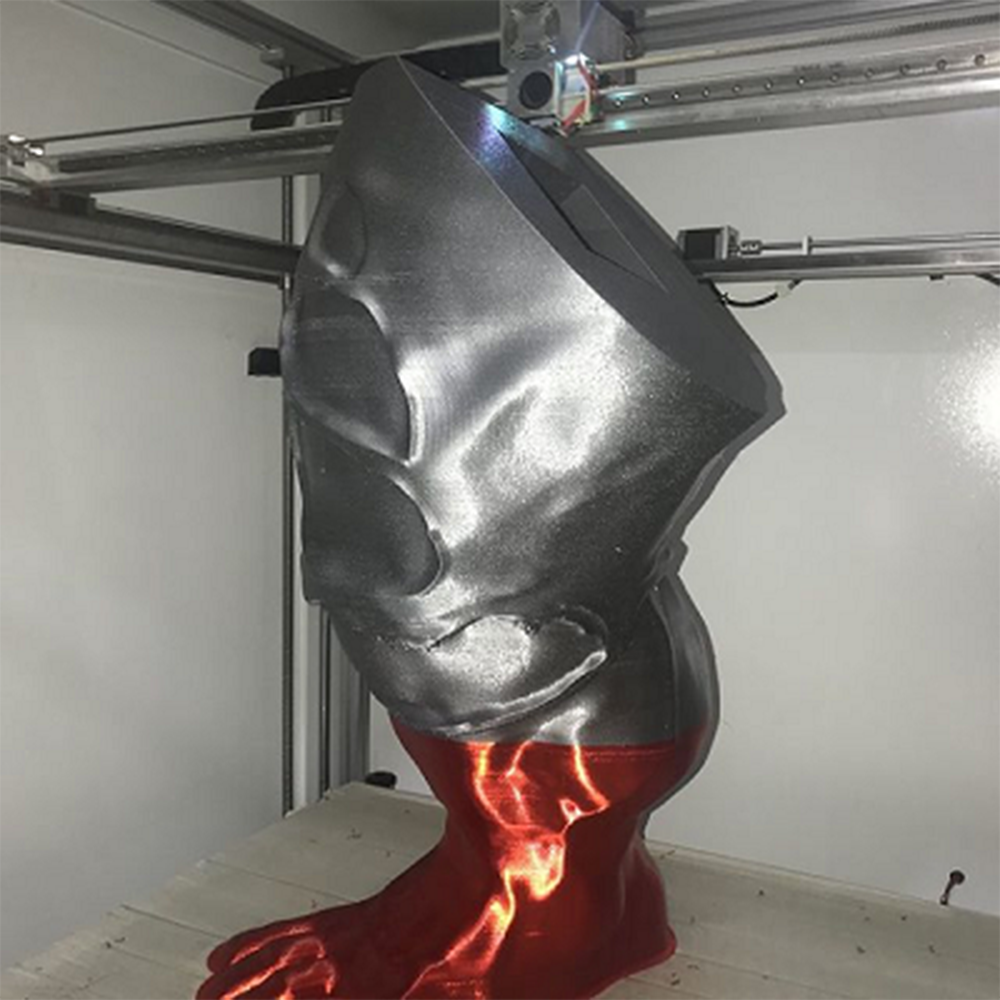

MD-600Pro Is Widely Used In The Portrait Sculpture Industry. It Can Be 3D Printed And Then Colored To Achieve 1:1 True Restoration.



FEATURES

  • 600*600*600mm
  • Nozzle temp.350°C
  • Reliable 24/7
  • Pullable hot bed, easy to take out the model
  • Fully enclosed integrated body
  • The Best of Best


Super Large Build Volume

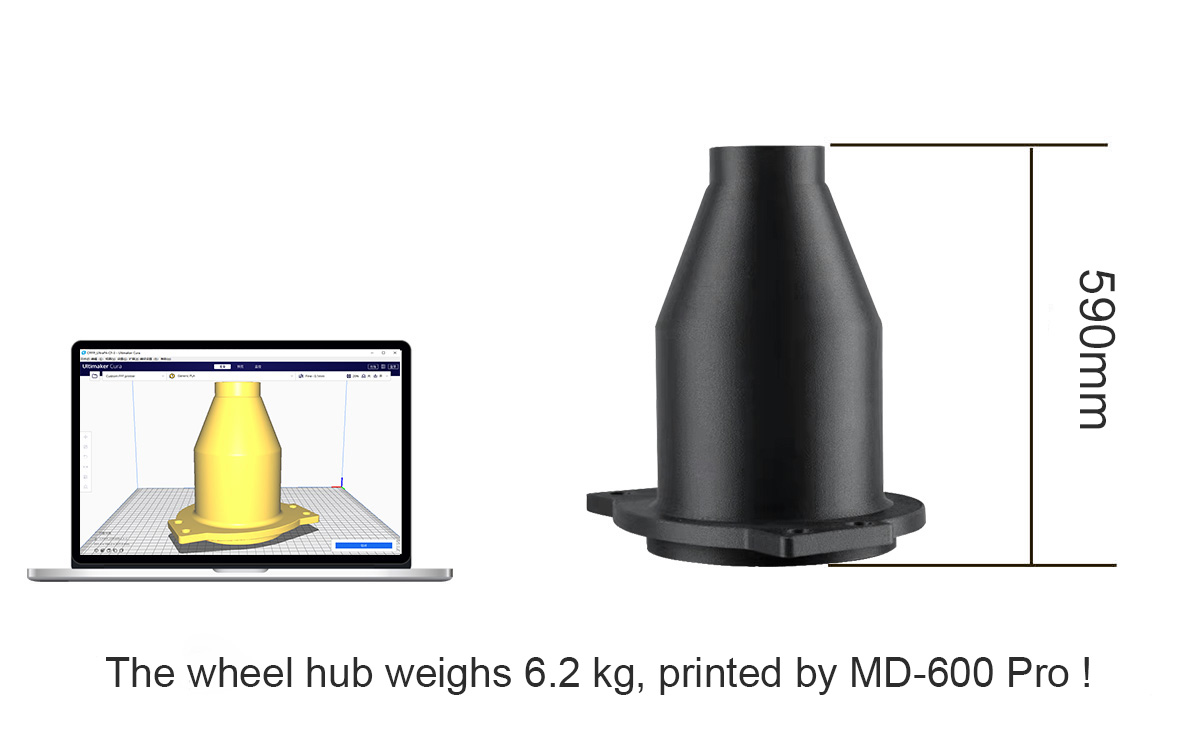

MD-600 Pro print size 600*600*600mm.In the photo, we can see part of large format 3D printer quality inspection area. Mass production means standard high quality.

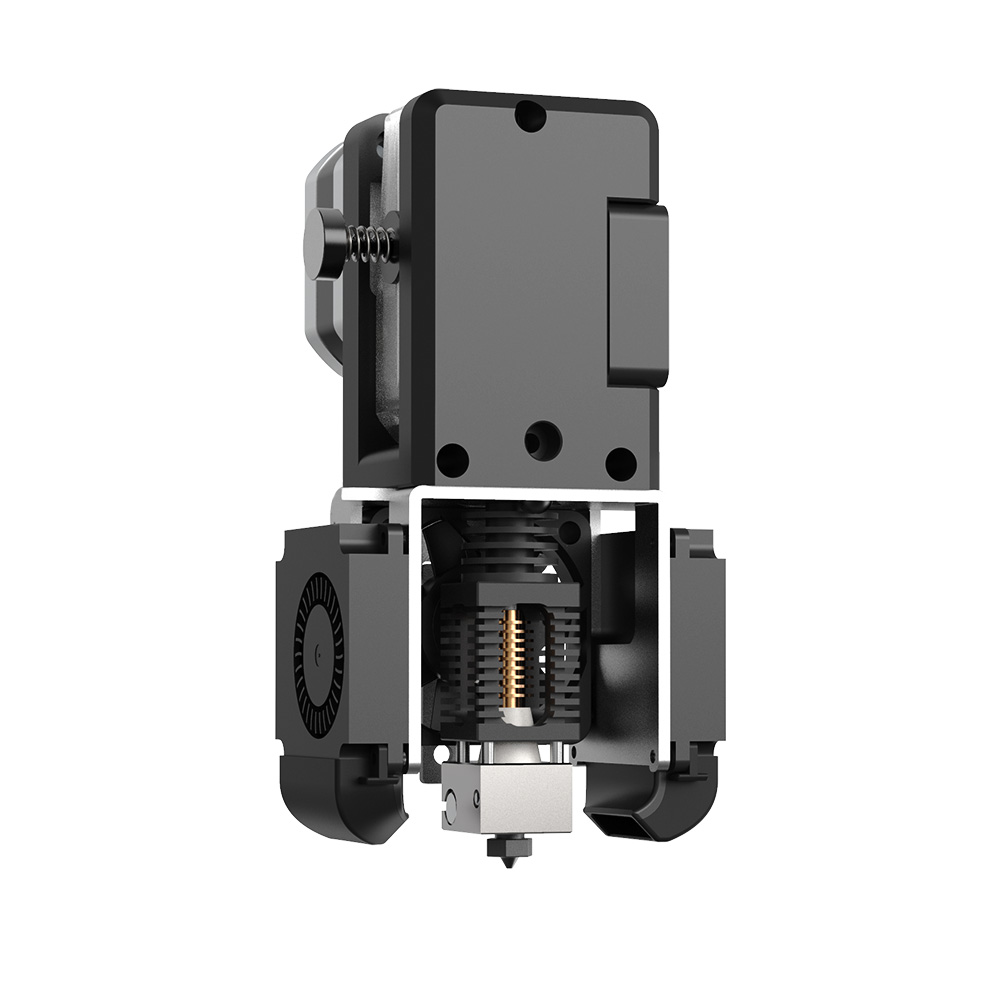

Nozzle Temprature Up To 350 ℃

350℃ global high temperature nozzles, exclusive launch, can support PLA, ABS, PC, Nylon, Carbon fiber, Flexible, etc.It provide more possibility on your application.
  • All Metal Hotend more durable
  • 350° Support More Filament
  • Direct Head Driving

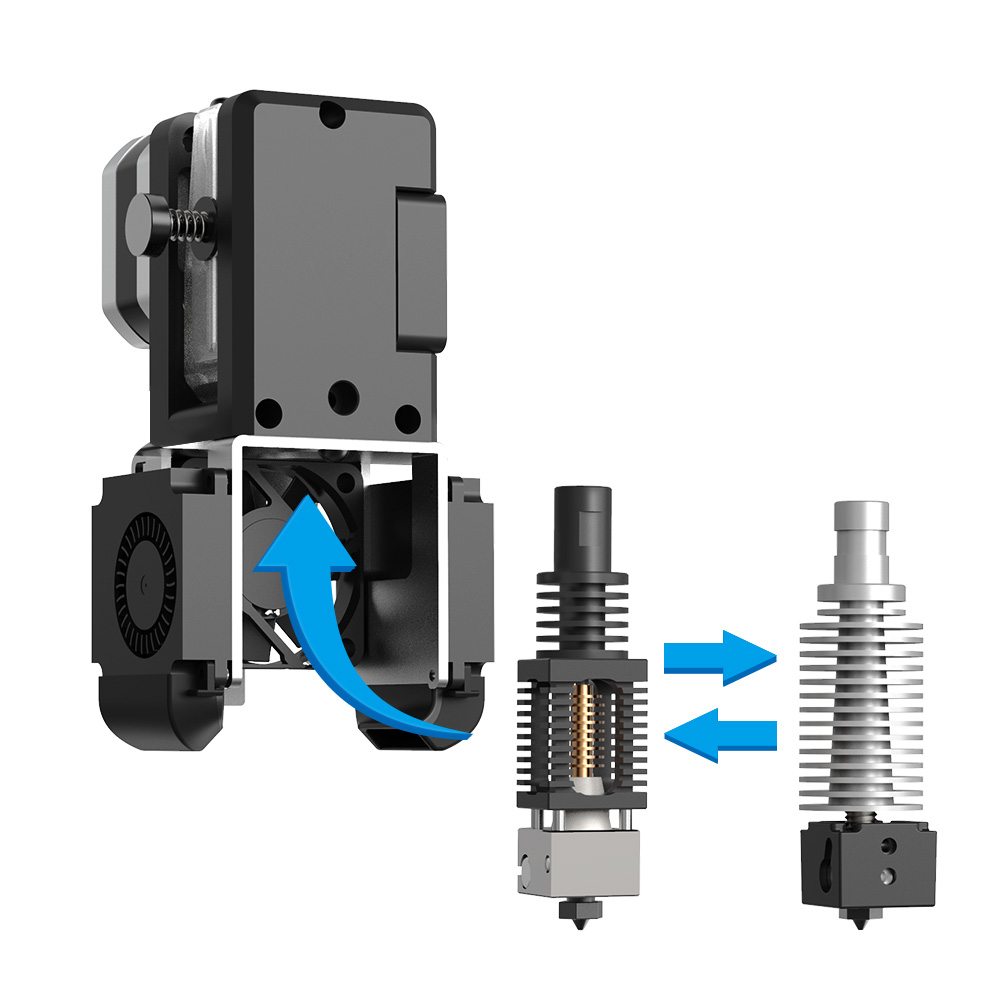

Easily replace printheads.

Realize a variety of material printing.

High Precision

We exclusively research and develop the extruder feeding system support high-speed printing, and accuracy can reach high to 0.05mm, it allows to extrude filament steady without block.
  • Precision up to: 0.05 mm
  • Speed up to: 200 mm/s

Accurate Linear Guide Rail

The accurate linear rail structure can print models in accuracy high reach to 4~5 times higher than the other ordinary optical axis printers in mass market. This structure offers accurate filament feeding, so that can print large model fast and perfectly.

Innovator of Industrial 3D printer Auto-Leveling

Say goodbye to manual leveling, the intelligent leveling system can automatically adjust the uneven hotbed.High-sensitivity sensor,one- touch leveling and 25-point precise leveling.

Baby Step Intelligent Compensation

Baby step function is added on MD-600 Pro During the first layer printing process, the baby step can be used for precise leveling. The control accuracy of 0.01mm makes the first layer stable and reliable and makes the leveling more intelligent.

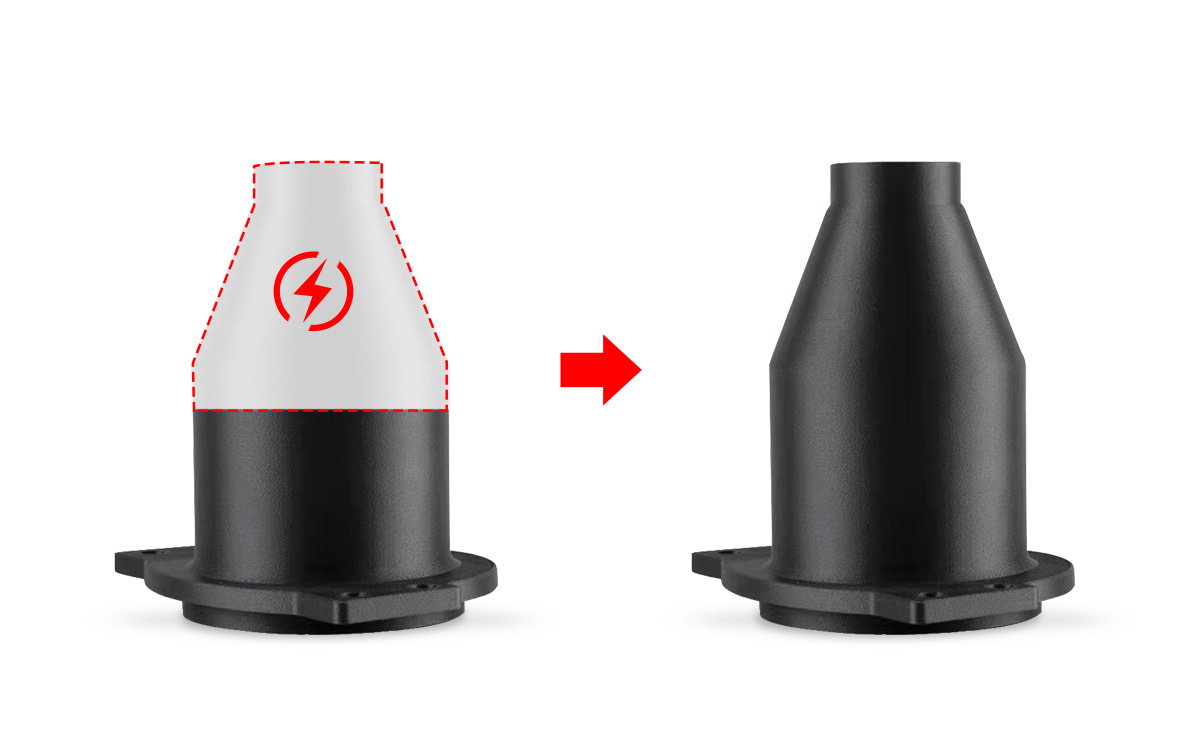

UPS (Uninterrupted Power Supply)

Buit in UPS, When the machine is powered off, the machine will automatically suspend printing, and retum to the home point, when the power on, the machine will continue to complete the remaining printing work from the point of suspension.

Upgraded Silent Motherboard

MD-600 Pro uses a more powerful 32-bit motherboard independently developed by a MINGDA professional intemal team
Efficient Platform
Other Details

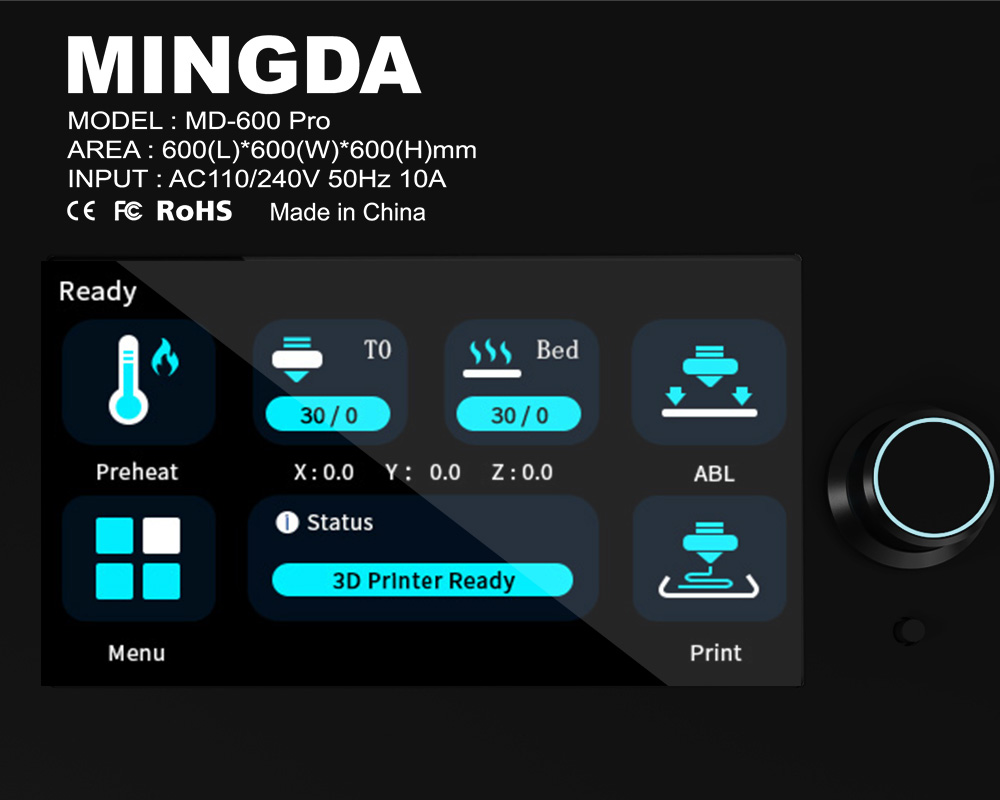

5 inch Colorful Touch Screen

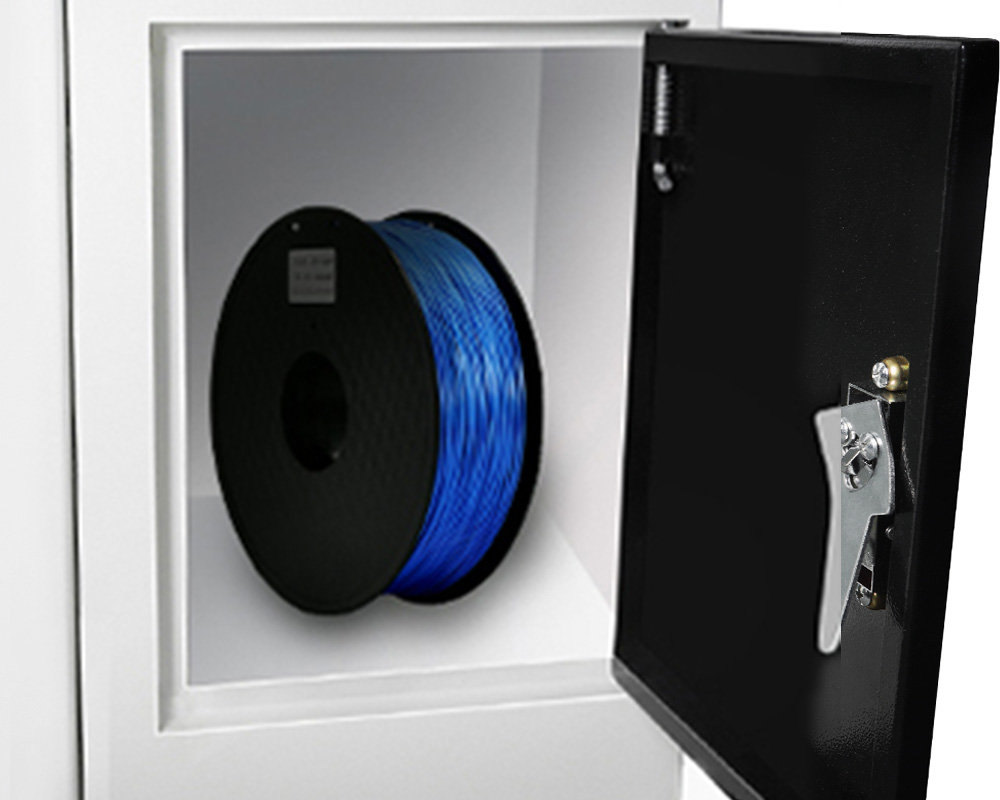

Closed hanging room

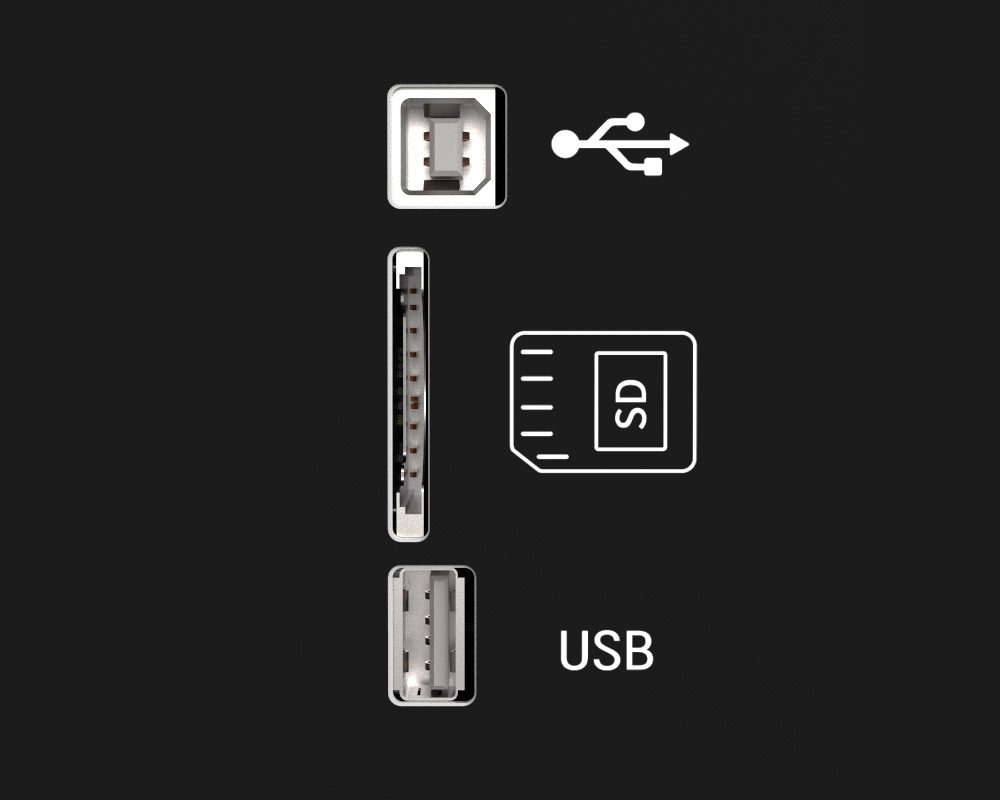

Support SD card or U disk Printing

Auxiliary feeding

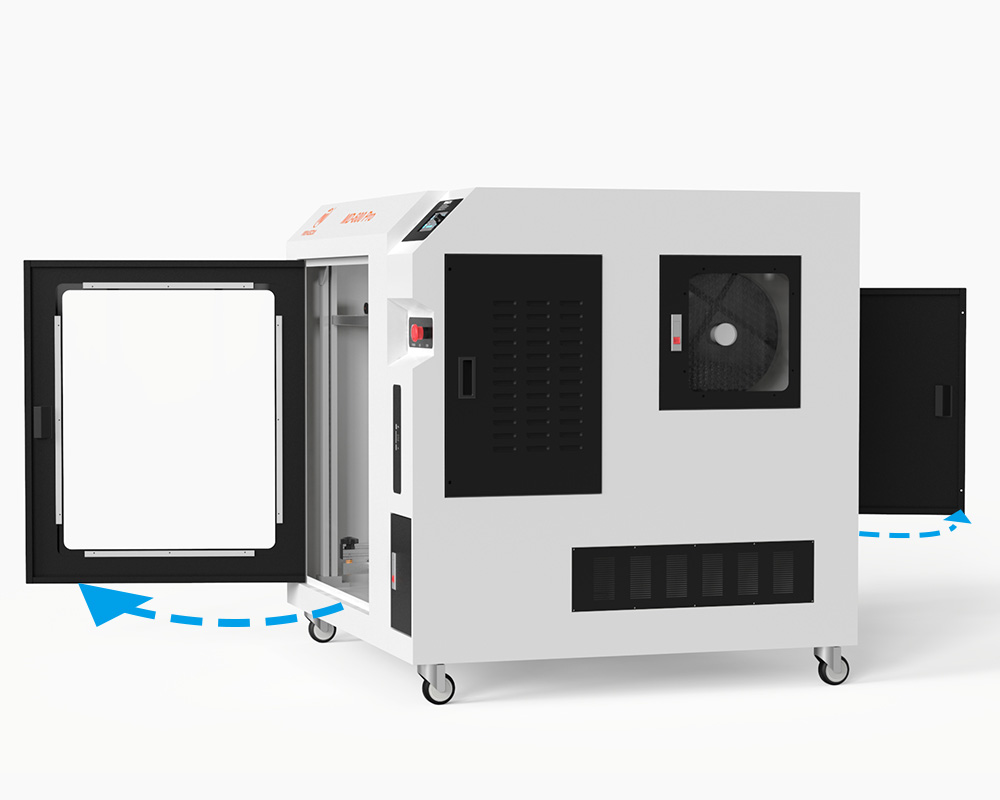

Front and Rear Door Design

Storage Box


Filament And Applications
We provide high-quality MINGDA filaments. The filaments for each model are more than 72 hours, and the MD600Pro is integrated with PLA large-roll filaments (5kg), and there is no need to protect or replace the filaments in the middle.

HtPA-CF
PET-CF
HtPA-GF
PET-GF
PA12-CF
PETG-ESD
HtPA
TPU-Foam


Product Parameters

PRINTING



TEMPERATURE



Printing Technology

Fused Deposition Modeling

Max. Nozzle Temp.

350degree

Bulid Volume

600*600*600mm

Max. Bed Temp.

80degree

Number of Nozzle

Single





Layer Thickness

0.05-0.3mm

SPEED



Filament Diameter

1.75mm

Recommend  Printing Speed

60-100mm/s

Filament Campatibility

PLA、ABS、ASA、TPU、PETG、PETG-ESD，PP, PET-GF, PET-CF, PA12-CF,HtPA-GF, HtPA-CF

Max Printing Speed

200mm/s

Nozzle Diameter

0.4mm





ELECTRICAL



MECHANICAL



Power Requirements

110/220V

Construction

Power-coated Steel, Aluminum Casting for Motion Components

Rated Power

780W

Platform

10mm thickness aluminum hot bed

Screen



Leveling

auto-leveling

Connectivity

USB, SD card, U disk

X Y Postition Precision

0.015mm



Z Postition Precision

0.0015625mm



SPECIAL FUNCTION



SOFTWARE



Uninterruptible Power System

Save data when power is off

Support Software

Cura, Reptier-Host, Simplify3D

Filament Detection

Pause printing when filament run out

Supported File Types

Stl, Obj, G-code

Automatic Shutdown

Turn off the power automatically when printing is complete

Operating Systems

Windows(7,8,10),Mac OS X
